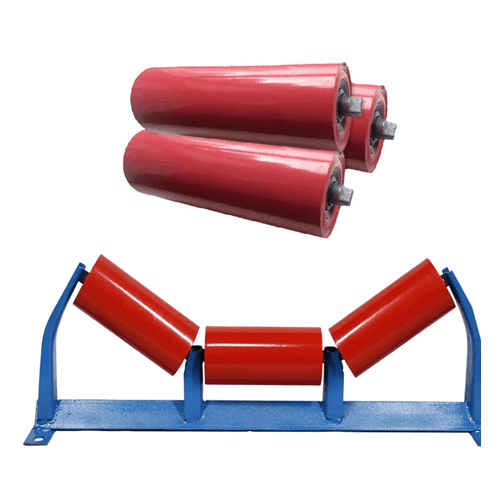

Conveyor brackets are engineered mounting components used to securely support conveyor rollers and maintain accurate roller alignment within the conveyor frame. Our range includes Conveyor Roller Set, Carrying Roller, Conveyor Bracket Set, and complete Conveyor Roller Set assemblies, designed for reliable material handling, smooth belt movement, stable operation, and easy installation across different conveyor systems.
Designed for dependable conveyor support, our bracket solutions provide a rigid mounting arrangement for rollers while helping maintain consistent belt tracking and stable operation. We supply Conveyor Roller Set, Carrying Roller, Conveyor Bracket Set, and Conveyor Roller assemblies for different conveyor structures and material-handling requirements. Each component can be selected according to conveyor width, roller dimensions, load conditions, mounting arrangement, and operating environment to achieve reliable performance and straightforward installation.
A conveyor bracket is a structural mounting component used to support conveyor rollers and maintain their correct position within a conveyor system. It provides a secure connection between the roller assembly and the conveyor frame, helping maintain proper belt alignment, stability, and smooth material handling.
Conveyor brackets are commonly used with carrying roller sets, return rollers, and other conveyor roller assemblies. Their design can be selected according to roller diameter, belt width, load requirements, mounting arrangement, and conveyor frame construction.
Provides a stable mounting arrangement for conveyor rollers and roller sets.
Helps maintain the correct roller position for reliable belt tracking and smooth operation.
Designed for secure roller installation in material handling and bulk conveyor applications.
Share Your Conveyor Roller Requirements With Us and Get the Best Price, Tailored to Your Needs. Our Team Will Respond Quickly With a Competitive Quote.
Mild Steel / Carbon Steel
4–12 mm
60–159 mm
04
400–2400 mm
05
80–250 mm
06
50–180 mm
07
20° / 35° / 45°
08
−20°C to +80°C
Select the bracket according to the roller, conveyor structure, operating load and installation requirements.
Match the bracket design with the roller diameter, shaft size and mounting arrangement to ensure secure installation.
Select the bracket according to conveyor belt width and required roller length for proper belt support.
Consider belt weight, conveyed material load, roller spacing and impact forces when determining bracket strength.
Use suitable bracket thickness for the expected load. Heavy-duty applications generally require reinforced construction.
Check mounting holes, hole pitch and conveyor-frame dimensions before selecting the bracket.
Select painted, powder-coated or galvanized construction according to the working environment and corrosion exposure.
Enter your conveyor requirements to get a preliminary bracket and roller selection reference based on belt width, load, roller diameter and spacing.
Conveyor brackets provide a secure mounting arrangement for roller assemblies across different conveyor configurations and material handling applications.
Used to mount carrying roller assemblies that support the loaded conveyor belt along the conveying line.
Provides mounting support for return rollers on the underside of belt conveyor systems.
Suitable for conveyor systems handling coal, minerals, aggregates, cement and other bulk materials.
Reinforced bracket designs can be used for demanding applications with higher roller and belt loads.
Check bolt torque and retighten all mounting fasteners
Recheck bracket alignment and roller shaft position
Check conveyor load and use a suitable heavy-duty bracket
Verify shaft diameter and bracket mounting dimensions
Inspect the bracket, roller and conveyor frame and correct alignment
A conveyor bracket is a structural mounting component used to support and position conveyor rollers on the conveyor frame.
Mild steel and carbon steel are commonly used. Stainless steel or galvanized construction can be selected where greater corrosion resistance is required.
Consider the roller diameter, shaft dimensions, belt width, roller arrangement, conveyor load, mounting pattern, and trough angle.
Yes. Bracket dimensions, mounting holes, plate thickness, and mounting arrangements can be manufactured according to the conveyor design.
Depending on the design, brackets can be used with carrying rollers, return rollers, impact roller assemblies, and conveyor roller sets.
